Overscallop Spear Top Slide Gate

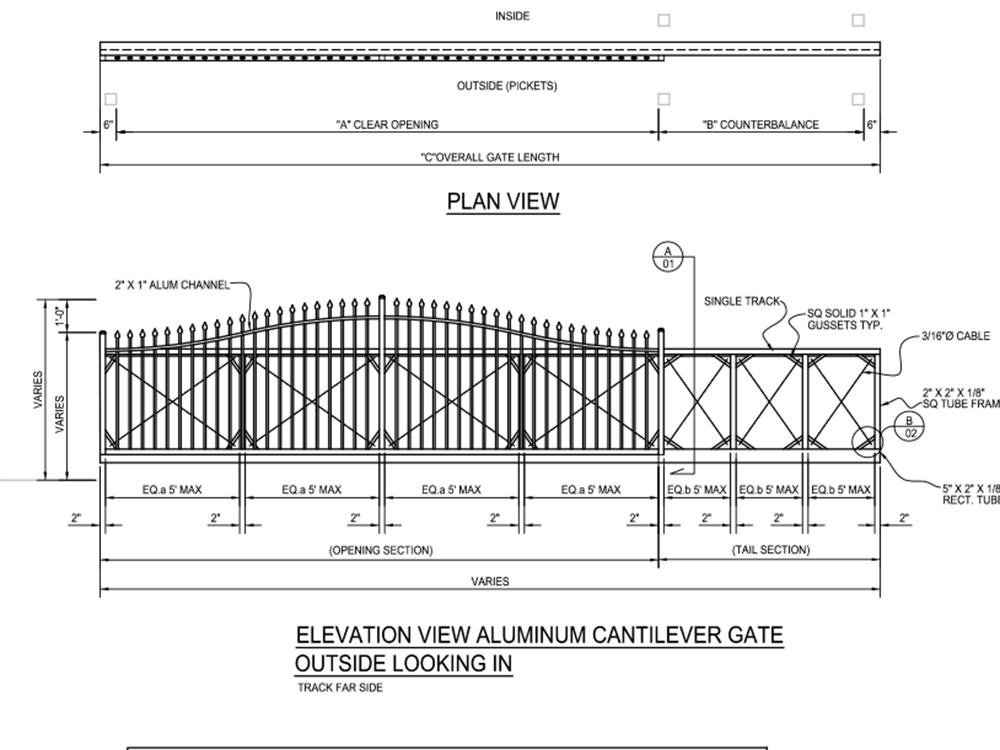

Ornamental cantilever gates are an excellent choice for providing a classy high profile entrance to any home or business. Ornamental gates use vertical pickets that are closely spaced to provide real security and appeal. Each gate is coated to provide a top-notch finish. Available in our standard manufactured styles or customized to your special design, a cantilever gate's overall length is usually one and a half the distance of the opening. So, if you have a 30’ opening; your gate is 45’ overall. You must account for this space along the fence where the gate stores. Aluminum ornamental cantilever gates use an aluminum square frame with an extruded track at the top. Trucks or trolleys are installed so that the trucks run inside the track to support the gate from the support posts. At the bottom, there are two guide wheels that keep the gate plumb and centered. Steel cantilever gates are very reliable and economic. Aluminum cantilever gates are definitely lighter, the rollers are enclosed and a great platform for an ornamental look. The enclosed track system is a much smoother operation during snow and ice storms. Our spear top overscalloped design provides a real point of entrance to any fene line. This design has an easy upward slope to the center of the gate that provides a real look of class and elegance while still maintaining real security.  *Please note that the gate picture represents a custom gate.  Please refer to the style drawing for a more accurate representation of your gate.

We are here to help! Contact us with any questions.

Select Gates

  Product Unit Price Attributes
Over Arch Aluminum Cantilever Gate - 6' tall 12' opening 18' overall Over Arch Aluminum Cantilever Gate - 6' tall 12' opening 18' overall

Call For Pricing - 712-454-7732

Over Arch Aluminum Cantilever Gate - 6' tall 16' opening 24' overall Over Arch Aluminum Cantilever Gate - 6' tall 16' opening 24' overall

Call For Pricing - 712-454-7732

Over Arch Aluminum Cantilever Gate - 6' tall 20' opening 30' overall Over Arch Aluminum Cantilever Gate - 6' tall 20' opening 30' overall

Call For Pricing - 712-454-7732

Overscallop Spear Top Cantilever Gate - 6' tall 12' opening 18' overall Overscallop Spear Top Cantilever Gate - 6' tall 12' opening 18' overall

Call For Pricing - 712-454-7732

Overscallop Spear Top Cantilever Gate - 6' tall 16' opening 24' overall Overscallop Spear Top Cantilever Gate - 6' tall 16' opening 24' overall

Call For Pricing - 712-454-7732

Overscallop Spear Top Cantilever Gate - 6' tall 20' opening 30' overall Overscallop Spear Top Cantilever Gate - 6' tall 20' opening 30' overall

Call For Pricing - 712-454-7732

Overscallop Spear Top Cantilever Gate - 6' tall 30' opening 45' overall Overscallop Spear Top Cantilever Gate - 6' tall 30' opening 45' overall

Call For Pricing - 712-454-7732
